SPF Spray Foam Insulation Pu Equipment

Basic Info

Model No.: CNMC-E

Type: Polyurethane Foam Machine

Raw Material: Mixing

Principle: High-Pressure Air Type

Automation: Automatic

Computerized: Non-Computerized

Certification: CE, ISO9001:2008, SGS

Additional Info

Packaging: wooden box

Productivity: 5000 sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong China

Supply Ability: 5000 sets/Month

Certificate: CE

HS Code: 8422489990

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of SPF Spray Foam Insulation Pu Equipment

Polyurethane Foam Insulation applications:This spray foam equipment  is spraying two-component materials spray(optional) like polyurethane foaming materials,  in embankment waterproof, , auxiliary cofferdam,tanks, pipe coating, cement layer protection,wastewater disposal,roofing, basement waterproofing, industrial maintenance,  cold storage insulation, wall insulation and so on.

Features: Polyurethane Coated Machine

1. Stable cylinder supercharged unit, easily providing adequate working pressure;

2. Small volume, light weight, low failure rate, simple operation, easy mobility;

3.Polyurethane Spray Foam Machine Adopting the most advanced ventilation method, guarantee equipment working stability to the maximum;

4. Minimizing spraying congestion with 4-layers-feedstock device;

5. Multi-leakage protection system to protect the safety of the operator;

6. Equipped with emergency switch system, help operator deal with emergencies rapidly;

7. Digital counting system can understand original consumption timely;

8. Reliable & powerful 220V heating system enables rapid warming of raw materials to the best state, making sure it works great in cold condition;

9. Humanized design with equipment operation panel, super easy to get the hang of it;

10. Feed pump adopts big change ratio method, it can easily feed raw materials high viscosity even in winter.

11. The latest spraying gun has great features like small volume, light weight, low failure rate, etc;

Parameter of Polyurethane Foam Insulation

Technical Parameters:

Model number :CNMC-E  Pu Foaming Machine

Power source: single phase 220V 50Hz

Heating power: 7.5KW

Driven mode: pneumatic

Air source: 0.5~0.8 MPa ≥0.9m³/min

Raw output: 2~12 kg/min

Maximum output pressure: 11Mpa

AB material output ratio: 1:1

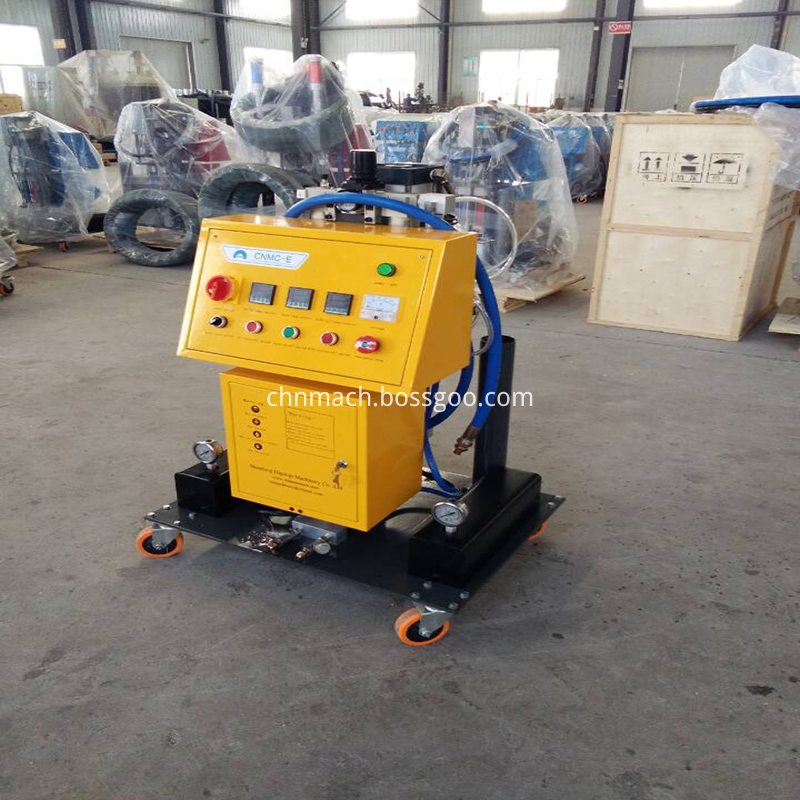

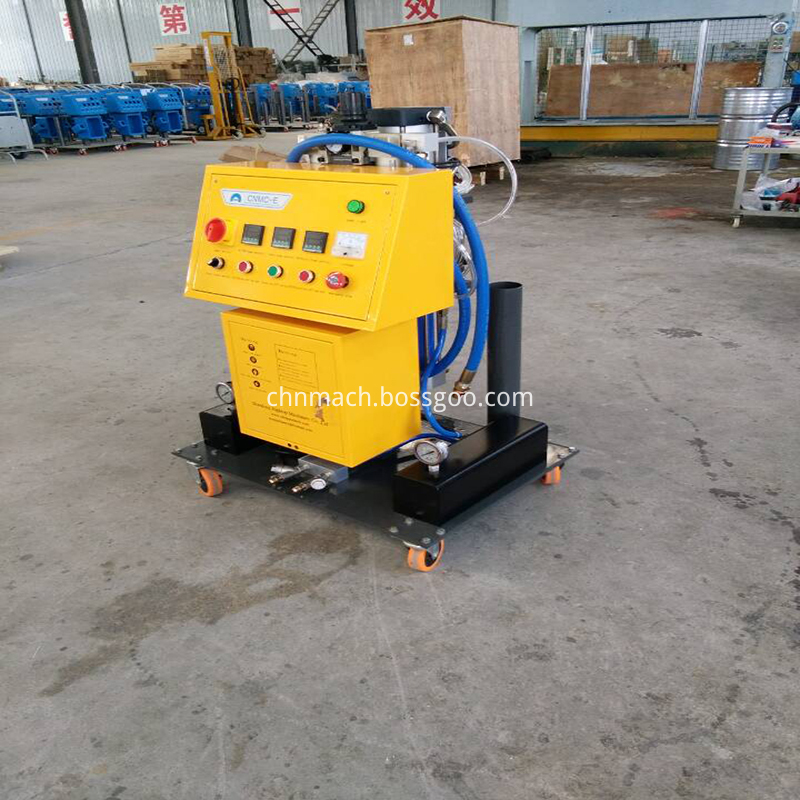

Images of SPF Spray Foam Insulation Pu Equipment
