Air Powered Mining Pavement Jack Hammer

Basic Info

Model No.: TPB-60

Structure: Horizontal Drilling Machine

Layout: Horizontal

Controlling Mode: Artificial

Number of Shaft: 3

Hole Diameter: <50mm

Automatic Grade: Semiautomatic

Precision: High Precision

Certification: CE

Condition: New

Color: Blue

Additional Info

Packaging: Carton Box

Productivity: 10000 Sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong

Supply Ability: 10000 Sets/Month

Certificate: CE

HS Code: 81671900

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of Air Powered Mining Pavement Jack Hammer

The pneumatic breaker TPB-60 is designed to take advantage of compressed air to break rock, asphalt, reinforced concrete as well as other large, thick or hard objects. As a highly efficient pneumatic tools, this pneumatic pick hammer boasts high power and long life, and it is the ideal choice for engineering construction projects related to mine, road, bridge and so on.

Shandong Hightop Machinery Co., Ltd is the leader in polyurethane technology . Our company is mainly in engaged in Spray Foam Machine, Polyurethane Foaming Machine, Spray Foam Equipment, Spray Foam Insulation Machine also have Airless Spray Equipment ,small excavator , Road Construction Machinery , Packing Machine ,snack machine .,chemical material, air polisher.

Parameter of Air Powered Mining Pavement Jack Hammer

Model: TPB-60

N.W: 30 kg

Length: 645 mm

Under Air Pressure 6kg/ m² :

Piston Diameter: 57.15 mm

Piston Stroke: 100 mm

Percussive Frequency: 1400 b.p.m

Air Consumption: 2.0 m³/min

Bit Head Size: 1-1/8 x6 mm or 1-1/4 x6 mm

Air Tube Inner Diameter: 19 mm

Air Inlet Size: 3/4 PT

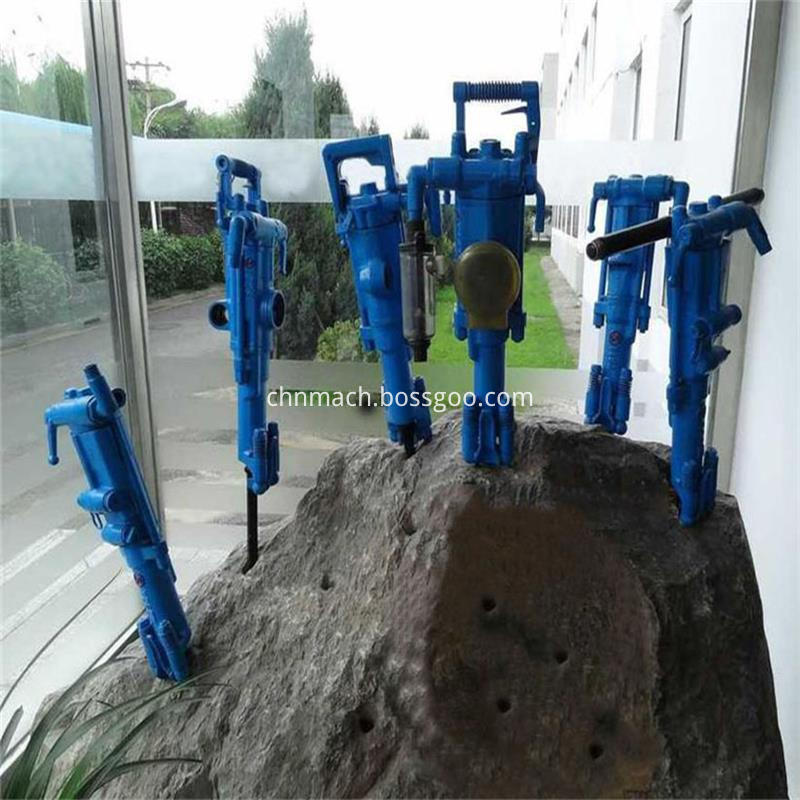

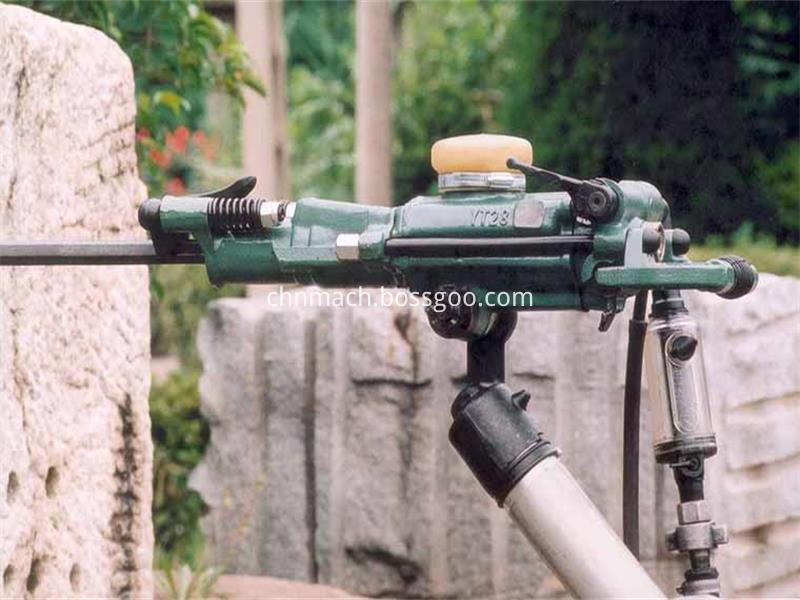

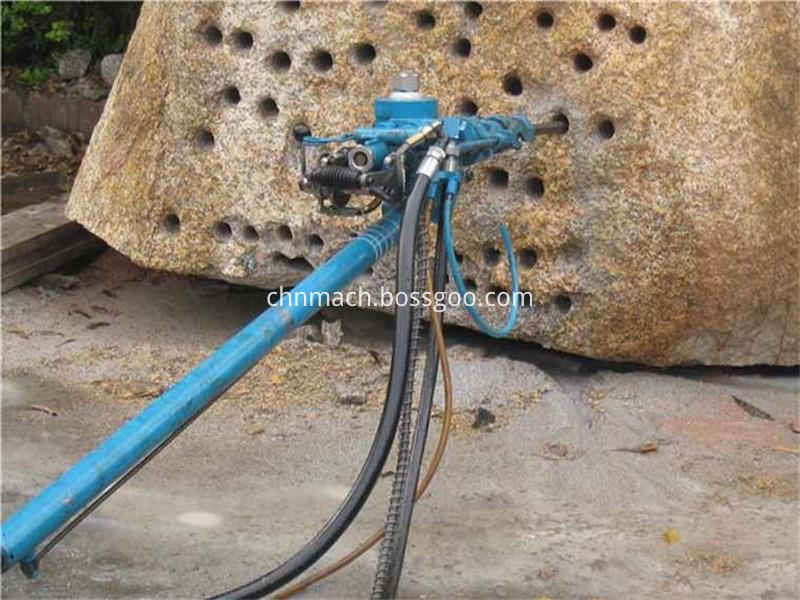

Images of Air Powered Mining Pavement Jack Hammer
