Insulated Sandwich Panel Pu Foam Injection Machine

Basic Info

Model No.: CNMC220C

Type: Polyurethane Foam Machine

Raw Material: Mixing

Principle: High-Pressure Air Type

Automation: Automatic

Computerized: Computerized

Certification: CE, ISO9001:2008

Additional Info

Packaging: wooden box

Productivity: 5000 sets/Month

Brand: CNMC

Transportation: Ocean,Land,Air

Place of Origin: Shandong China

Supply Ability: 5000 sets/Month

Certificate: CE

HS Code: 8422489990

Port: Qingdao,Shanghai,Ningbo

Product Description

Introduction of  Insulated Sandwich Panel Pu Foam Injection Machine

Shandong Hightop Machinery Co., Ltd is the leader in polyurethane technology . Our company is mainly in engaged in Spray Foam Machine, Polyurethane Foaming Machine, Spray Foam Equipment, Spray Foam Insulation Machine also have Airless Spray Equipment ,small excavator , Road Construction Machinery , Packing Machine ,snack machine .,chemical material, air polishe

The high pressure pu polyurethane foam injection machine or Polyurethane Injection Foam Machine is special designed for memory foam, pillow, shoe, sole and motorcycle car seat injection work. This machine is controlled by PLC, high accuracy, simple operation, convenient maintenance. When pre-set first injection is finished, the alarming relay will give alarms.

 Manufacture various PU rigid foam and semi-rigid foam products such as imitation wood furniture, picture frame, decoration strip, lamp panel, garage door, refrigerator interlayer, calorifier interlayer etc;

Chemical material: polyol and isocyanate can be used for sandwich insulation panel

Parameter of  Insulated Sandwich Panel Pu Foam Injection Machine

Technical Parameter:

Injection output: 2-1000g/s
Material tank volume: 30L-120L

Mixing ratio range: 100:28~48
Mixing head: 2800-5000rpm, forced dynamic mixing

Compressed air needed: dry, oil free,  P:0.6-0.8MPa Q:600NL/min(customer-owned)

Nitrogen requirement: P:0.05MPa Q:600NL/min(customer-owned)

Temperature control system: heat:2×3KW
Input power: three-phase five-wire 380V 50HZ Other power customizable
Rated power:8KW-12KW

Color( customizable): White/Red/Blue
Weight: 600Kg-1200Kg

Dimension: 4100(L)*1250(W)*2300(H)mm

Images of  Insulated Sandwich Panel Pu Foam Injection Machine

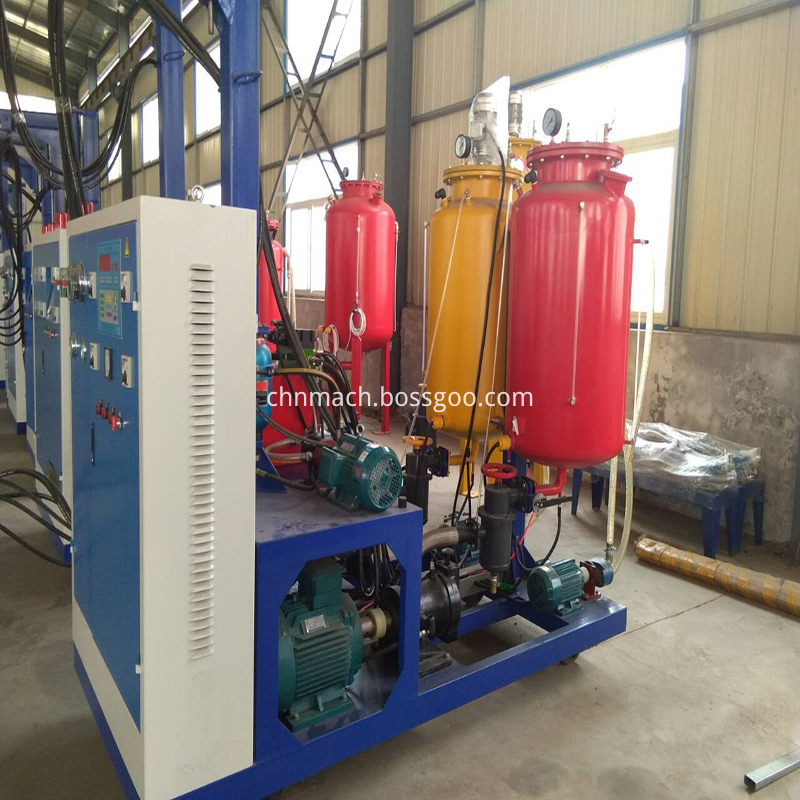

Photo show of Polyurethane Foam Machine

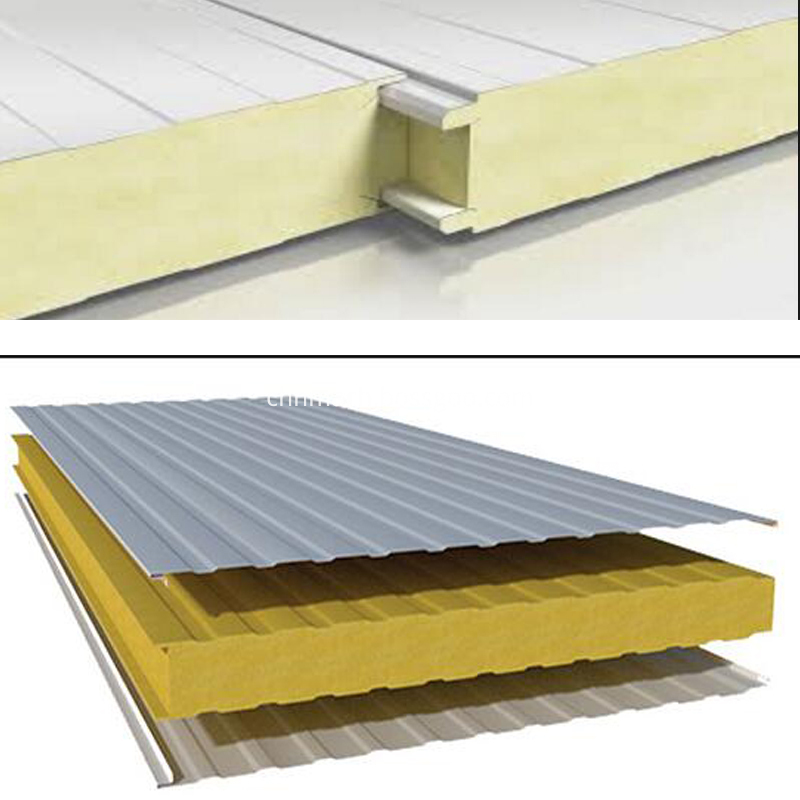

Finish product of Polyurethane  the Foam Making Machine
