Coal Mine LED Mining Cap Lamp

Basic Info

Model No.: CNMC-3.7

Additional Info

Packaging: wooden case

Productivity: 300sets/month

Brand: CNMC

Transportation: Air

Place of Origin: China

Certificate: CE ISO

Port: Shanghai,Qingdao

Product Description

Coal Mine LED Mining Cap Lamp

Introduction of Coal Mine LED Mining Cap Lamp

Usage:

It is suitable for mineral industry, tunnel projects, construction and maintenance for power,

communication, highway, railway at night, night lamp for cutting off rubber plant and absorbing mucus and for lighting a flood, rescuing and marine use.

Our company is mainly in engaged in LED mining lamp ,Spray Foam Machine, Spray Foam Insulation Machine also have Airless Spray Equipment ,small excavator , Road Construction Machinery , Packing Machine ,snack machine .,chemical material, air polisher.

Features:

1.Lost cost ,high safety.

LED : less energy and super brightness LED

2. Battery : safety lithium ion battery

3. Small in size, light in weight, free maintenance, explosion prevention, waterproof, long life

4. Lighting time : more than 20 working hours, double light source design

5. Charger AC input : AC110 ~ 240V, 50/60Hz DC output : DC4.2V,1A

6. Working temperature : -10 ~ 45 degrees

7. Relative air humidity : <= 95% +- 3RH

Technical specification:

It adpot isopiestic pressure current limiting charging way.Its setting value volatge is 4.2V(normal charging voltage is 4.2V).When charging max current is 1A and voltage approachs to 4.2V,charging current will reduce gently. When batterys voltage is 4.2V and current is less than 100A,the indicator light will display green color. this mean that miners lamp can be used normally. When its charging ,the indicator light will display red color.

2.LED:it adpot 1W high-power Led, The life is more than 50000 hours. illumiance is more than 3000 lux/60lm,it  adpot two sets of light source, one is main - six auxiliary light source or main-axiliary in one .when main light source lose function, pls turn a switch axis into auxiliary light source then it go into work normally(This is for meet an emergency)

3.Battery (Lithium ion)

It adpot new styled lithium ion battery which is with over-charging , over-discharging and a short circuit protection fuction.Every battery cycled lifetime is more than 500 times.It has 75% rated capacity after using 500 times.Its a newest environmental protection battery

Parameter of Coal Mine LED Mining Cap Lamp

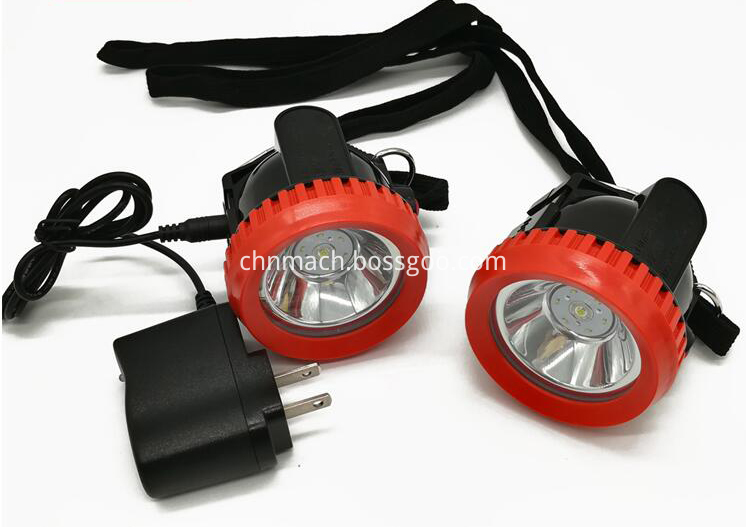

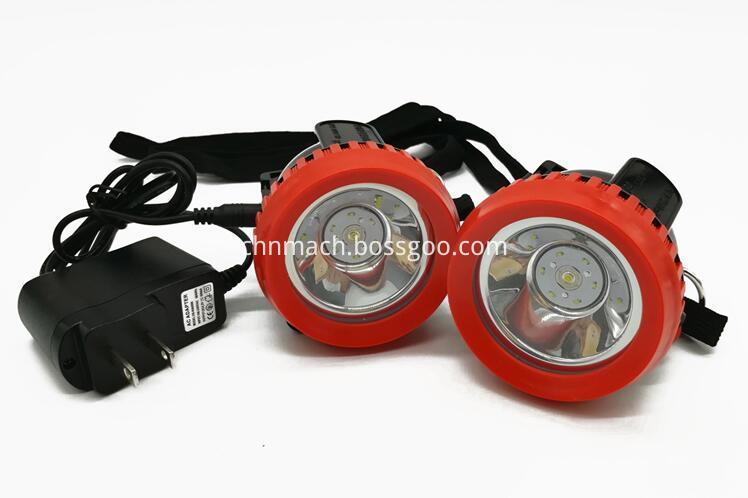

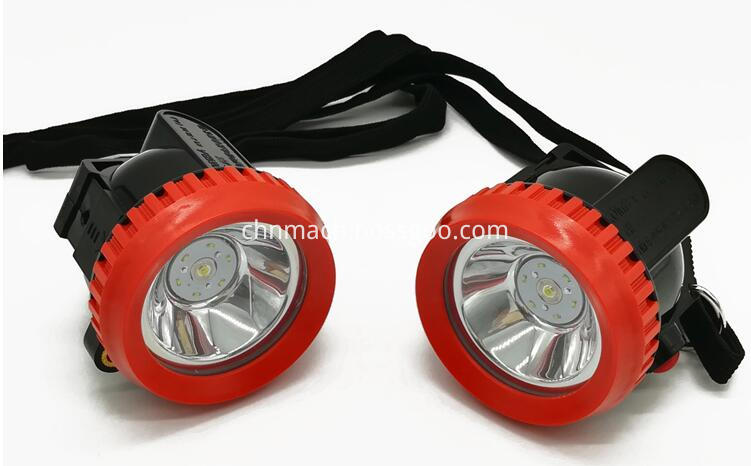

Images of Coal Mine LED Mining Cap Lamp
